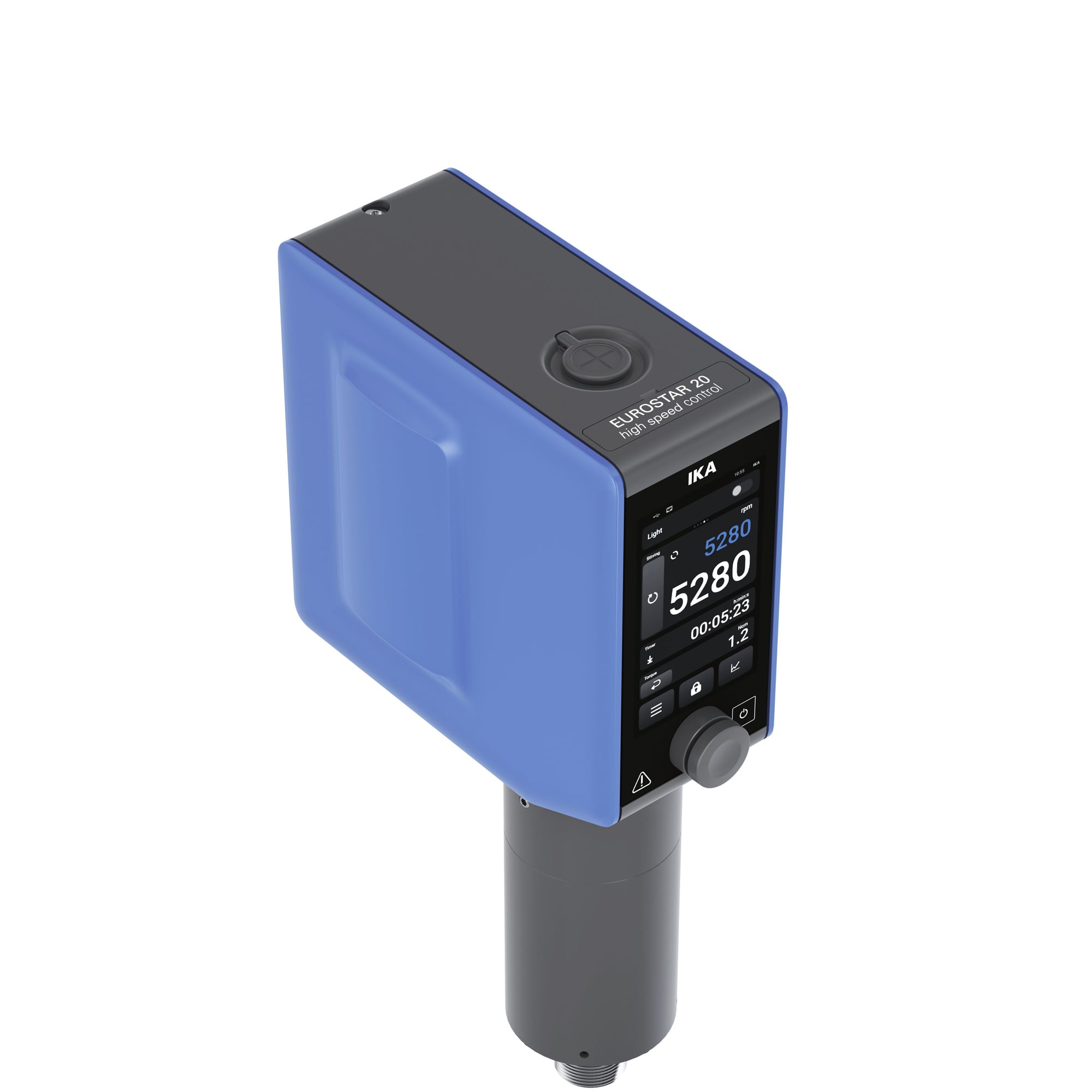

EUROSTAR 20 high speed control

The new generation of EUROSTAR overhead stirrers combines modern design, user-friendliness and reliable performance. With up to 23% less space required compared to the previous models they fit perfectly into any laboratory.

EUROSTAR 20 high speed control is the right solution for advanced mixing tasks requiring high speed up to 6000rpm, volumes up to 20 liters (H2O) and viscosities up to 10 000mPas. Its maximum torque of 40 Ncm and linear adjustment to 20 Ncm at maximum speed guarantee reliable and powerful performance.

Highest precision thanks to new viscosity measurement
An integrated torque sensor offers high precision torque monitoring (+/- 1 Ncm accuracy). The torque measurement data can be used to calculate viscosity (mPas) based on user selected stirrer and vessel criteria providing important feedback on the mixing process. The desired stirring speed 150-6000rpm is always guaranteed even with changes to the torque demand or viscosity of the material.

Maximum safety and reliability
• User-friendly: Large TFT display shows all parameters at a glance
• Lock key: Prevents accidental changes to settings
• Safety Circuits: automatic safety shutoff from stirring impeller blockage or user specified torque limit
• Protection class IP 54: Resistant to splash water and steam for reliable use in demanding environments
• Brushless motor: Durable, clean and quiet in operation

Connectivity and documentation
• Program modes and graph display offer advanced control options
• More interfaces: USB, RS232, Ethernet, wireless and Wi-Fi connectivity offer enhanced possibilities for automation
• Compatible with labworldsoft® laboratory software for integration into digital workflows and documentation of processes

Feautures
• Viscosity measurement (mPas)
• High precision torque measurement +/- 1 Ncm
• Vibration sensor
• Integrated Light
• Left/Right rotation direction (interval mode)
• Speed: Soft start in 3 modes
• Chaotic Mixing Mode
• Lock ring indication (chuck)
• Temperature measurement
• Program mode
• Graph display
• TFT Display
• Wireless(WPAN), Ethernet & Wifi connection
